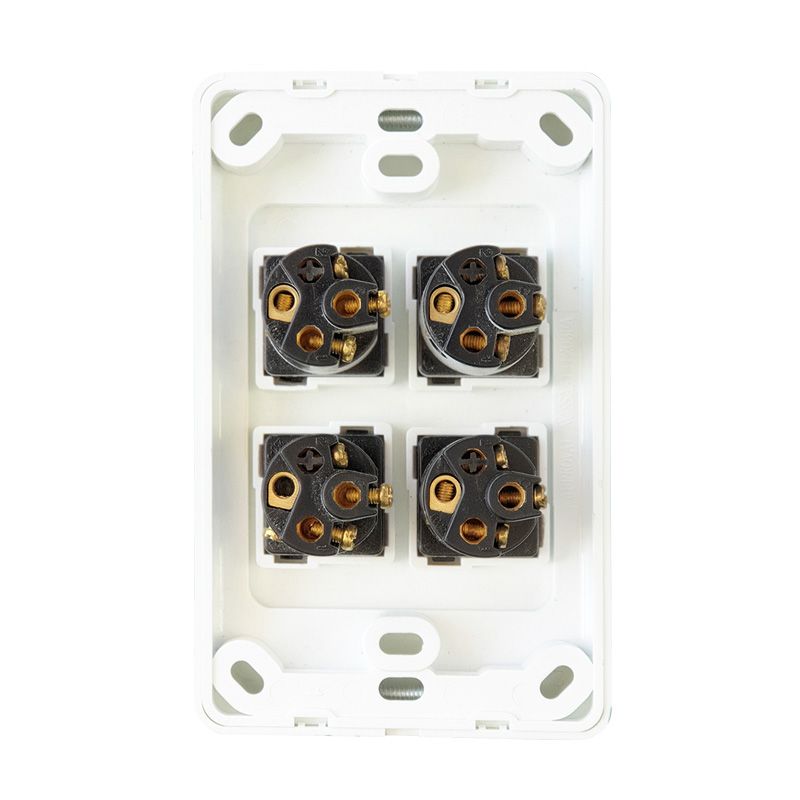

Need four separate lighting controls grouped on one wall plate? This 4 gang vertical light switch places four switches on a single white vertical plate, making it useful for larger living areas, kitchens, offices and other spaces with several lighting zones.
The switch is rated at 220–240V, 10A, supports 2-way switching as stated in the existing product information, includes a loop terminal and uses a removable clip-on front surround.
It is listed as SAA certified to AS/NZS 3133:2013 + A1 and carries a 10-year warranty when installed by a licensed electrician.
Quick Guide: Is This 4 Gang Light Switch Right for You?
| Switch type | 4-gang vertical wall switch |
| Controls | Four separate lighting circuits |
| Rating | 220–240V, 10A |
| Orientation | Vertical |
| Size | W75 × H118 × D30mm |
| Typical use | Open-plan living areas, kitchens, offices, retail spaces and rooms with four lighting zones |
Why Choose This 4 Gang Vertical Light Switch?
- Four switches on one compact plate for four separately controlled lighting circuits.
- 2-way switching capability as listed in the current product information.
- Loop terminal included for installation flexibility.
- Clip-on removable surround for a neat finished appearance.
- Polycarbonate construction in a standard vertical format.
- SAA certified and listed to AS/NZS 3133:2013 + A1.
- 10-year warranty when installed by a licensed electrician.
What Does 4 Gang Mean?
A 4 gang light switch has four individual switches on one plate. It is intended where four separate lighting circuits need to be controlled from the same wall position.
The gang count is not the same as the switching method. The product information also lists 2-way switching capability, which refers to controlling the same lighting circuit from more than one switch position. Your electrician should confirm the required arrangement.
Where Can a 4 Gang Light Switch Be Useful?
Four-gang switches are practical in spaces with several lighting zones, such as kitchens with separate task and general lighting, open-plan living areas, offices, retail spaces or rooms with feature lighting.
If you need fewer or more switches, compare the full 1-to-6-gang Green LED range below rather than using a plate with the wrong number of controls.
4 Gang Light Switch Specifications
| Specification | Details |
|---|---|
| Model / SKU | 3014385252037 |
| Voltage | 220–240V |
| Maximum current | 10A |
| Number of gangs | 4 |
| Dimmable | No – standard on/off switches |
| Removable cover | Yes |
| Size | W75 × H118 × D30mm |
| Material | Polycarbonate |
| Orientation | Vertical |
| Standard | AS/NZS 3133:2013 + A1 |
| Certification | SAA |
| Warranty | 10 years when installed by a licensed electrician |
Compare Other Light Switch Sizes
Green LED also stocks 1 gang, 2 gang, 3 gang, 5 gang and 6 gang vertical light switches.
Power Points, Dimmers and NZ Compliance
For the same project, compare the double vertical power point, double horizontal power point and LED dimmer switch. Browse the full switches and power points NZ range.
The current product documentation lists SAA certification and AS/NZS 3133:2013 + A1.
Fixed electrical wiring should be completed in accordance with New Zealand requirements by an appropriately qualified electrical worker. The 10-year warranty applies when installed by a licensed electrician.
Frequently Asked Questions About 4 Gang Light Switches
What does 4 gang mean?
It means four separate switches are fitted on one wall plate for four separately controlled lighting circuits.
Does it support 2-way switching?
The existing product information lists 2-way switching capability. Your electrician should confirm the planned circuit arrangement.
Is it dimmable?
No. It is a standard on/off switch plate. Use a compatible LED dimmer where dimming is required.
What size is it?
The listed size is W75 × H118 × D30mm.
Is an SDoC available?
Yes. The SDoC is linked above for project and electrical documentation.
Who should install it?
Installation should be completed in accordance with New Zealand electrical requirements by an appropriately qualified electrical worker.
Buy a 4 Gang Light Switch in NZ
Choose this 4 gang vertical light switch when you need four lighting controls on one compact plate, a 10A rating and the compliance documentation above. Browse the Green LED switches and power points NZ range for the rest of the project.
