Need a simple wall switch for one lighting circuit? This single vertical light switch is a 1-gang white wall switch designed for New Zealand homes, offices and other compatible fixed-wiring installations.
It is rated at 220–240V, 10A, supports 2-way switching as stated in the existing product information, includes a loop terminal and has a removable clip-on front surround for a clean finish.
The product is listed as SAA certified to AS/NZS 3133:2013 + A1 and carries a 10-year warranty when installed by a licensed electrician.
Quick Guide: Is This the Right Light Switch for You?
| Switch type | 1-gang vertical wall switch |
| Controls | One lighting circuit |
| Rating | 220–240V, 10A |
| Orientation | Vertical |
| Size | W75 × H118 × D30mm |
| Typical use | Bedrooms, hallways, laundries, offices and rooms with one switched lighting circuit |
Why Choose This Single Vertical Light Switch?
- 1-gang format for a single separately controlled lighting circuit.
- 2-way switching capability as listed in the current product information.

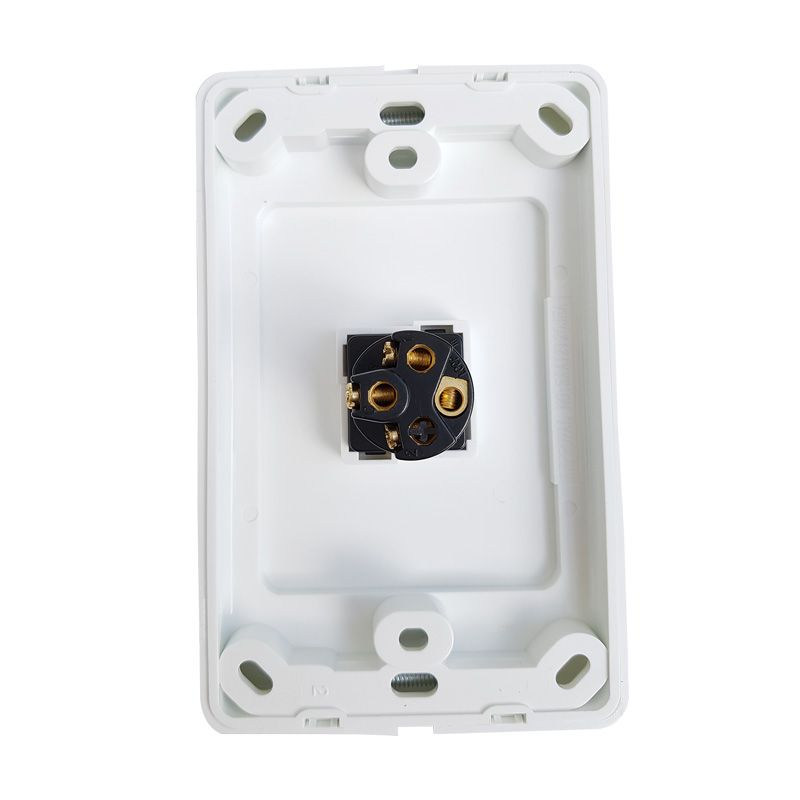

- Loop terminal included for installation flexibility.
- Clip-on removable front surround for a neat finished appearance.
- Polycarbonate construction for practical everyday use.
- SAA certified and listed to AS/NZS 3133:2013 + A1.
- 10-year warranty when installed by a licensed electrician.
What Does 1 Gang Mean?
“Gang” refers to the number of switch mechanisms on the wall plate. A 1 gang light switch has one switch and is normally selected where one lighting circuit needs to be controlled from that wall position.
This is different from 2-way switching. Gang count tells you how many switches are on the plate; 2-way describes a circuit arrangement where the same light can be controlled from more than one switch position. Your electrician should confirm the required switching arrangement.
Where Can This 1 Gang Wall Switch Be Used?
This single switch is suited to common residential and commercial areas where one lighting circuit is controlled from the wall, including bedrooms, hallways, laundries, offices and utility areas.
If the same wall position needs more circuits, compare our double vertical light switch or 3 gang vertical light switch.
Single Light Switch Specifications
| Specification | Details |
|---|---|
| Model / SKU | 3014385252012 |
| Voltage | 220–240V |
| Maximum current | 10A |
| Number of gangs | 1 |
| Dimmable | No – standard on/off switch |
| Removable cover | Yes |
| Size | W75 × H118 × D30mm |
| Material | Polycarbonate |
| Orientation | Vertical |
| Standard | AS/NZS 3133:2013 + A1 |
| Certification | SAA |
| Warranty | 10 years when installed by a licensed electrician |
Other Switches, Power Points and Dimmers
For two or more lighting circuits, compare our 2 gang light switch, 3 gang light switch, 4 gang light switch, 5 gang light switch and 6 gang light switch.
For the same electrical fit-out, see our double vertical power point, double horizontal power point and LED dimmer switch. Browse the full switches and power points NZ range.
NZ Compliance, SDoC and Installation
The current product documentation lists SAA certification and AS/NZS 3133:2013 + A1.
Fixed electrical wiring should be completed in accordance with New Zealand requirements by an appropriately qualified electrical worker. The 10-year product warranty applies when installed by a licensed electrician.
Frequently Asked Questions About Single Light Switches
Is this a 1 gang light switch?
Yes. It has one switch mechanism for one separately controlled lighting circuit.
Does it support 2-way switching?
The current product specification states that it supports 2-way switching options. Your electrician should confirm the planned circuit arrangement.
Is this a dimmer?
No. This is a standard on/off wall switch. For compatible dimming, compare our LED dimmer switch.
What size is it?
The listed size is W75 × H118 × D30mm.
Can the front cover be removed?
Yes. The product specification lists a removable clip-on front surround.
Is an SDoC available?
Yes. The SDoC is linked above for your electrician or project documentation.
Who should install it?
Because this is a fixed-wiring electrical accessory, installation should be completed in accordance with New Zealand electrical requirements by an appropriately qualified electrical worker.
Buy a Single Light Switch in NZ
Choose this 1 gang vertical light switch when you need one wall switch, a 10A rating and the compliance documentation listed above. For other gang counts, power points or dimming controls, browse the Green LED switches and power points NZ range.
