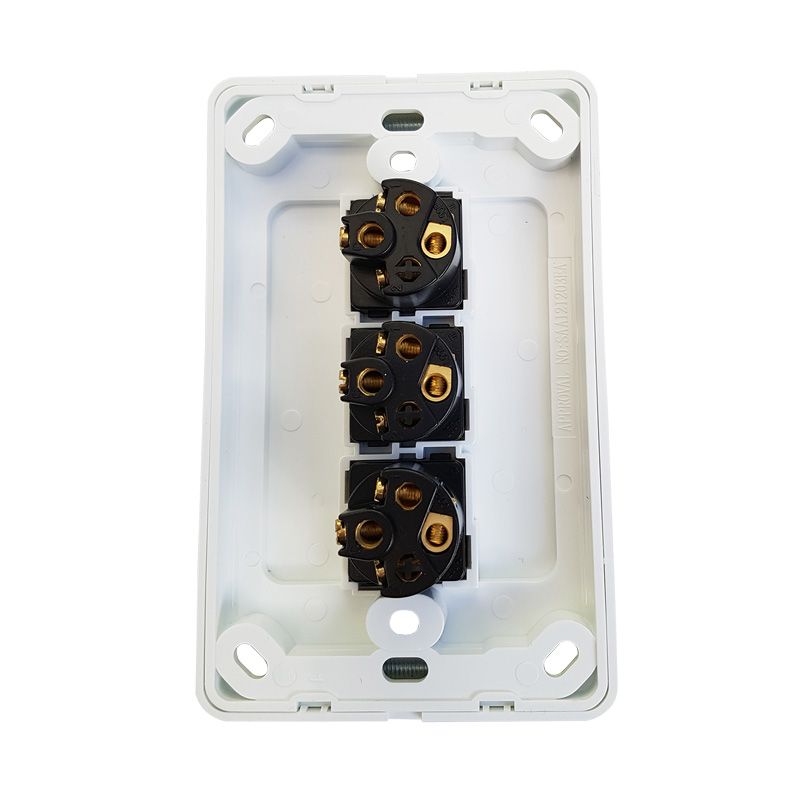

Need three separate light controls on one wall plate? This 3 gang vertical light switch combines three switches in one white vertical plate, making it suitable for kitchens, open-plan living areas, offices and other spaces with several lighting zones.
It is rated at 220–240V, 10A, uses a removable clip-on surround and is designed for the 2-way switching functionality described in the existing product information. A loop terminal is included.
The product is listed as SAA certified to AS/NZS 3133:2013 + A1 and carries a 10-year warranty when installed by a licensed electrician.
Quick Guide: Is This 3 Gang Light Switch Right for You?
| Switch type | 3-gang vertical wall switch |
| Controls | Three separate lighting circuits |
| Rating | 220–240V, 10A |
| Orientation | Vertical |
| Size | W75 × H118 × D30mm |
| Typical use | Open-plan areas, kitchens, lounges, offices and rooms with three lighting zones |
Why Choose This 3 Gang Vertical Light Switch?
- Three switches on one plate for three separately controlled lighting circuits.
- 2-way switching capability as listed in the current product information.
- Loop terminal included for installation flexibility.
- Clip-on removable surround for a clean finished appearance.
- Polycarbonate construction and standard vertical format.
- SAA certified and listed to AS/NZS 3133:2013 + A1.
- 10-year warranty when installed by a licensed electrician.
3 Gang vs 3-Way – What Is the Difference?
A 3 gang light switch means there are three separate switch mechanisms on the plate. It does not mean “3-way switching.” Gang count describes the number of switches, while 2-way switching describes a circuit arrangement where one light can be controlled from two switch positions.
This page previously used wording such as “3-way light switch panel,” which can be confusing. For this product, the useful buying question is whether you need three switches on one plate and whether your electrician requires the listed 2-way switching capability.
Where Can a 3 Gang Light Switch Be Useful?
A three-switch plate is useful where several lighting zones meet at one control point—for example main lights, feature lights and another local lighting circuit in a kitchen, living area or office. Grouping the controls on one plate keeps the installation compact.
Need fewer controls? Compare the 1 gang light switch or 2 gang light switch. Need more? See the 4-, 5- and 6-gang options below.
3 Gang Light Switch Specifications
| Specification | Details |
|---|---|
| Model / SKU | 3014385252036 |
| Voltage | 220–240V |
| Maximum current | 10A |
| Number of gangs | 3 |
| Dimmable | No – standard on/off switches |
| Removable cover | Yes |
| Size | W75 × H118 × D30mm |
| Material | Polycarbonate |
| Orientation | Vertical |
| Standard | AS/NZS 3133:2013 + A1 |
| Certification | SAA |
| Warranty | 10 years when installed by a licensed electrician |
Compare 1 to 6 Gang Light Switches
Choose the gang count that matches the number of separately controlled lighting circuits at that position. Green LED stocks 1 gang, 2 gang, this 3 gang model, 4 gang, 5 gang and 6 gang vertical light switches.
Matching Power Points and LED Dimmers
For the same project, compare our double vertical power point, double horizontal power point and LED dimmer switch. Browse all switches and power points NZ.
NZ Compliance, SDoC and Installation
The current product documentation lists SAA certification and AS/NZS 3133:2013 + A1.
Fixed electrical wiring should be completed in accordance with New Zealand requirements by an appropriately qualified electrical worker. The 10-year product warranty applies when installed by a licensed electrician.
Frequently Asked Questions About 3 Gang Light Switches
What does 3 gang mean?
It means there are three separate switch mechanisms on one wall plate for three separately controlled lighting circuits.
Is 3 gang the same as 3-way?
No. 3 gang describes the number of switches on the plate. Multi-way terminology describes how a circuit can be controlled from multiple positions.
Does this support 2-way switching?
The existing product information describes 2-way switching capability. Your electrician should confirm compatibility with the circuit design.
Is this a dimmer?
No. It is a standard on/off 3-gang switch plate. Use a compatible LED dimmer if dimming is required.
What size is it?
The listed size is W75 × H118 × D30mm.
Is an SDoC available?
Yes. The SDoC is linked above for project and electrical documentation.
Who should install it?
Because this is a fixed-wiring electrical accessory, installation should be completed in accordance with New Zealand electrical requirements by an appropriately qualified electrical worker.
Buy a 3 Gang Light Switch in NZ
Choose this 3 gang vertical light switch when you need three controls on one compact plate, a 10A rating and the compliance documentation above. For other gang counts, power points or dimming controls, browse the Green LED switches and power points NZ range.
