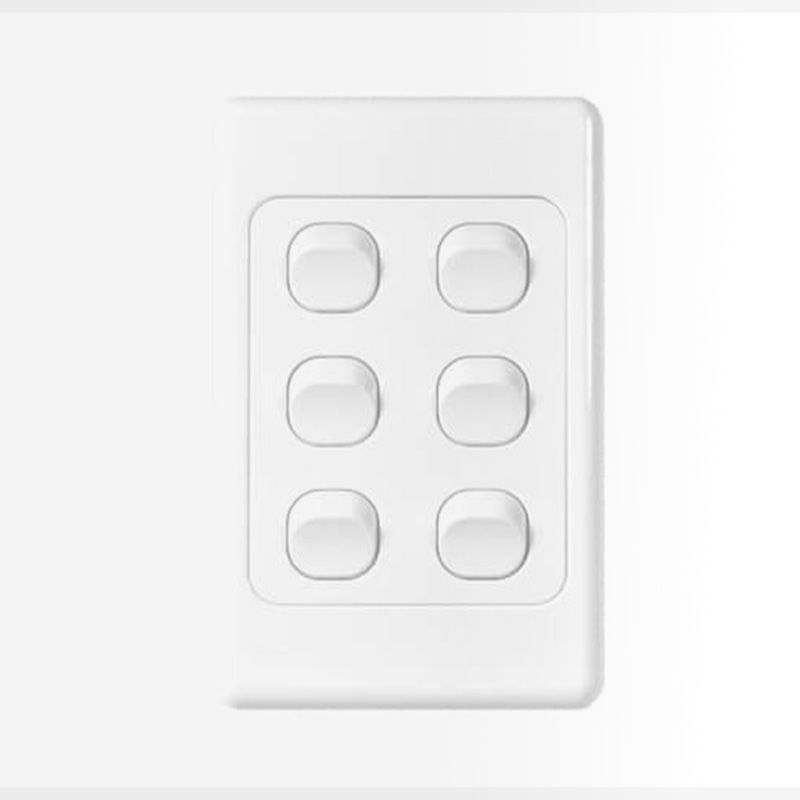

Need six lighting controls at one wall position? This 6 gang vertical light switch combines six individual switches in one white vertical plate, making it suitable for larger homes, open-plan areas, offices, hospitality spaces and other installations with multiple lighting zones.
The product is rated at 220–240V, 10A, supports 2-way switching as described in the existing product information, includes a loop terminal and uses a removable clip-on front surround.
It is listed as SAA certified to AS/NZS 3133:2013 + A1 and carries a 10-year warranty when installed by a licensed electrician.
Quick Guide: Is This 6 Gang Light Switch Right for You?
| Switch type | 6-gang vertical wall switch |
| Controls | Six separate lighting circuits |
| Rating | 220–240V, 10A |
| Orientation | Vertical |
| Size | W75 × H118 × D30mm |
Why Choose This 6 Gang Vertical Light Switch?
- Six switches on one compact wall plate for six separate lighting circuits.
- 2-way switching capability as listed in the current product information.
- Loop terminal included for installation flexibility.
- Clip-on removable surround for a neat finished appearance.
- Polycarbonate construction in a vertical format.
- SAA certified and listed to AS/NZS 3133:2013 + A1.
- 10-year warranty when installed by a licensed electrician.
What Does 6 Gang Mean?
A 6 gang light switch has six switch mechanisms on one wall plate. It is selected where six separately controlled lighting circuits need to be grouped at the same position.
Gang count describes how many switches are on the plate. It is different from 2-way switching, which describes the circuit arrangement used when a light is controlled from more than one switch location.
Where Can a 6 Gang Light Switch Be Useful?
A six-switch plate is most useful in larger spaces with many lighting zones—for example open-plan homes, offices, hospitality areas or commercial interiors where general, feature and task lighting are controlled separately.
6 Gang Light Switch Specifications
| Specification | Details |
|---|---|
| Model No. | 3014385252039 |
| Voltage | 220–240V |
| Maximum current | 10A |
| Number of gangs | 6 |
| Dimmable | No – standard on/off switches |
| Removable cover | Yes |
| Size | W75 × H118 × D30mm |
| Material | Polycarbonate |
| Orientation | Vertical |
| Standard | AS/NZS 3133:2013 + A1 |
| Certification | SAA |
| Warranty | 10 years when installed by a licensed electrician |
Compare 1 to 6 Gang Light Switches
Need fewer controls? Compare the 1 gang, 2 gang, 3 gang, 4 gang and 5 gang vertical light switches.
Power Points, Dimmers and NZ Compliance
For the same project, compare the double vertical power point, double horizontal power point and LED dimmer switch.
The current product documentation lists SAA certification and AS/NZS 3133:2013 + A1.
Fixed electrical wiring should be completed in accordance with New Zealand requirements by an appropriately qualified electrical worker.
Frequently Asked Questions About 6 Gang Light Switches
What does 6 gang mean?
It means six separate switch mechanisms are fitted on one plate for six separately controlled lighting circuits.
Does it support 2-way switching?
The existing product information lists 2-way switching capability. Your electrician should confirm the planned circuit design.
Is it a dimmer?
No. It is a standard on/off switch plate. Use a compatible LED dimmer if dimming is required.
What size is it?
The listed size is W75 × H118 × D30mm.
Is an SDoC available?
Yes. The SDoC is linked above.
Who should install it?
Installation should be completed in accordance with New Zealand electrical requirements by an appropriately qualified electrical worker.
Buy a 6 Gang Light Switch in NZ
Choose this 6 gang vertical light switch when you need six lighting controls on one compact plate. Browse the Green LED switches and power points NZ range for matching products.
